Diamond Grinding Shoes for Floor Grinding Machines
Product Details
Professional-grade diamond grinding shoes for aggressive concrete surface preparation on floor grinding machines.
Diamond grinding shoes are heavy-duty segment inserts designed for use on walk-behind floor grinding machines. Built on a solid steel body with raised diamond-impregnated segments arranged in an angled pattern, these shoes deliver aggressive yet controlled grinding action across flat concrete surfaces — making them the go-to tool for surface preparation before overlays, coatings, epoxy systems, and new floor coverings.
Also referred to as diamond grinding blocks or diamond grinding wedges, these segment inserts are sold as a set of three to fit the standard three-point plate configuration found on most floor grinding machines.
What Are Diamond Grinding Shoes Used For?
Diamond grinding shoes are used in professional concrete surface preparation applications where a hand-held cup grinder cannot cover the required area efficiently. The angled segment design maximises contact with the concrete surface, allowing the machine to strip, grind, and profile in a single pass.
Common applications include:
- Removing old adhesive, paint, epoxy coatings, and hardened sealants from concrete floors
- Light scarification and surface profiling before overlay or self-levelling compound
- Preparing concrete slabs for epoxy flooring systems and industrial coatings
- Levelling minor high spots and surface imperfections on concrete floors
- Pre-treatment of floors before polished concrete installation
Product Features

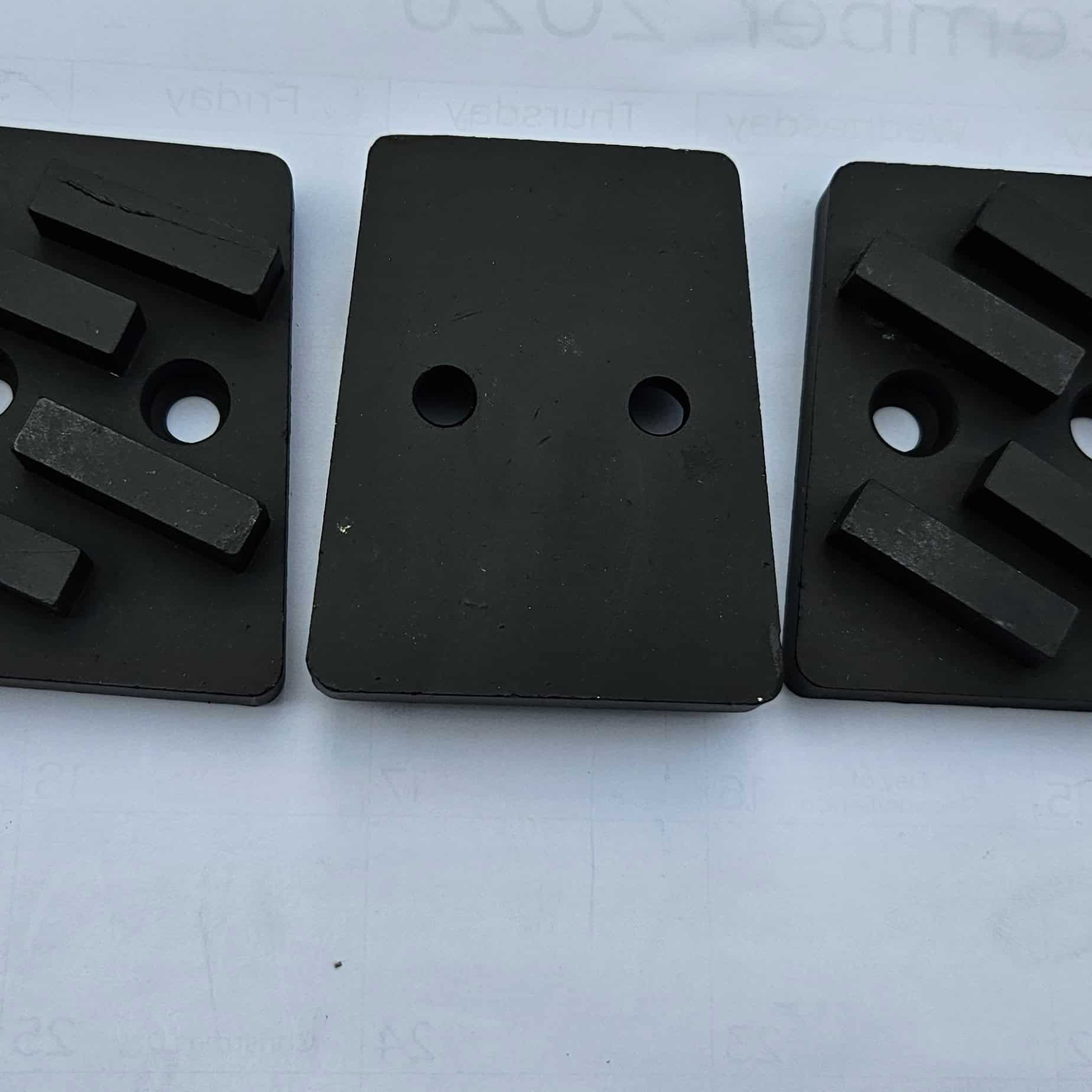

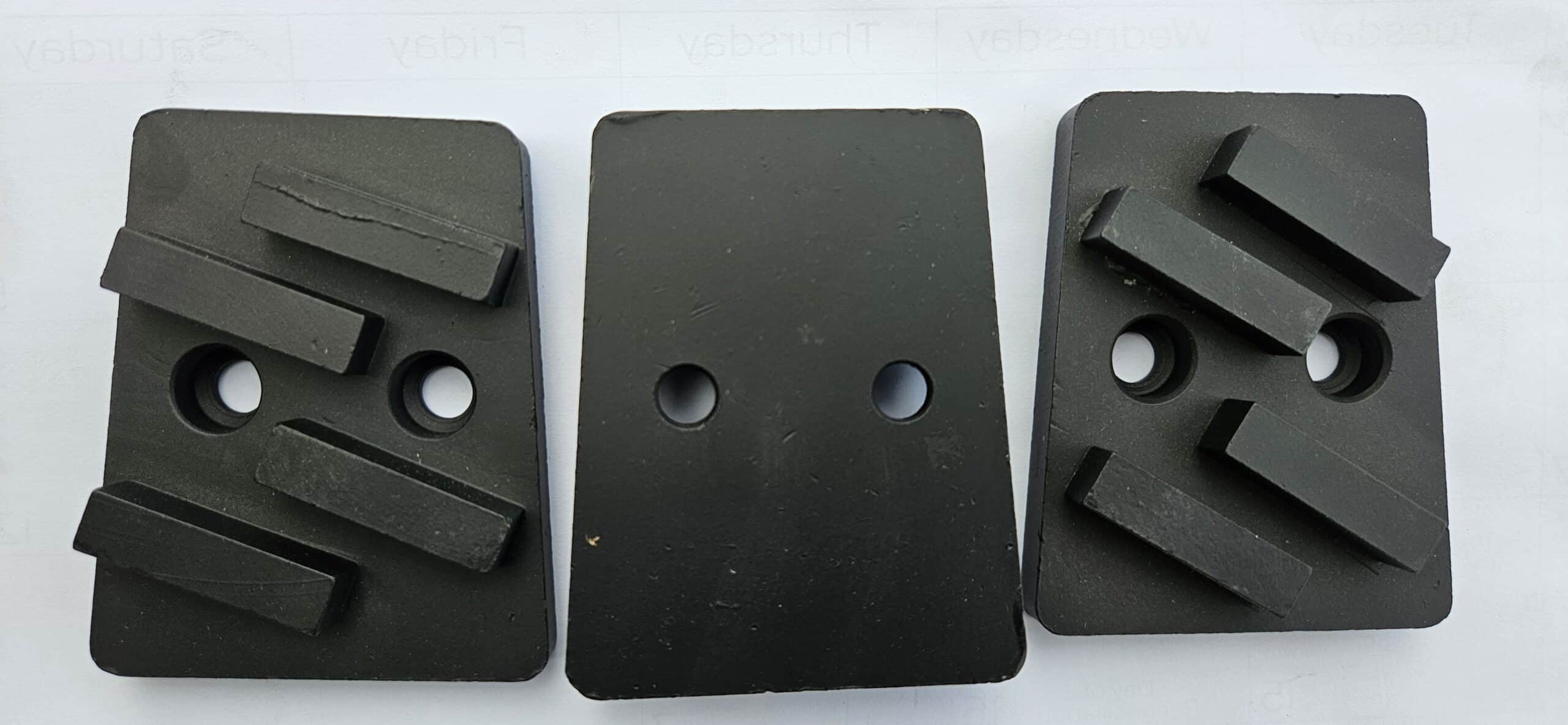

- Angled diamond segment layout — the diagonal arrangement of segments increases grinding efficiency and promotes even wear across the shoe body
- Dual mounting holes — secure bolt-on fitment to compatible floor grinding machine plates
- Heavy steel body construction — withstands the high rotational forces of walk-behind floor grinding machines
- Suitable for dry grinding — no water required for standard concrete surface preparation applications
- Sold as a set of three — fits the standard three-point plate configuration on most floor grinding machines
Technical Specifications
| Specification | Detail |
|---|---|
| Tool Type | Diamond Grinding Shoe (Segment Insert) |
| Also Known As | Diamond Grinding Block / Diamond Grinding Wedge |
| Application | Concrete floor grinding & surface preparation |
| Segment Pattern | Angled multi-segment layout |
| Mounting | Dual bolt-hole fitment |
| Compatible Equipment | Walk-behind floor grinding machines |
| Sold As | Set of 3 |
ho Needs Diamond Grinding Shoes?
Diamond grinding shoes are used by flooring contractors, construction companies, and property developers tackling medium-to-large concrete floor preparation projects. If you are preparing a warehouse floor for epoxy coating, stripping old adhesive from a commercial space before tiling, or profiling a concrete slab before a self-levelling pour — this is the tool for the job.
For smaller areas, edges, and detail work, pair these with a Diamond Turbo Cup Grinder for hand-held angle grinder use.
Frequently Asked Questions
What machines are diamond grinding shoes compatible with? Diamond grinding shoes are designed for walk-behind floor grinding machines fitted with a bolt-on segment plate. Check your machine’s plate configuration and bolt spacing before ordering to confirm compatibility.
Can diamond grinding shoes be used on tile or screed? These shoes are optimised for concrete and masonry surfaces. For softer screeds or tiles, contact us to confirm suitability before use.
How long do diamond grinding shoes last? Lifespan depends on the hardness of the concrete, the thickness of the coating being removed, and the machine’s operating speed. Harder concrete and thicker coatings will wear segments faster.
What is the difference between diamond grinding shoes and a cup grinder? Diamond grinding shoes are segment inserts for walk-behind floor grinding machines, designed to cover large flat areas efficiently. Cup grinders are hand-held tools that fit on a standard angle grinder and are better suited for smaller areas, edges, and detail work.
Do I need water when grinding with diamond grinding shoes? Standard concrete surface preparation with these shoes is a dry process. Always use appropriate dust extraction equipment when operating floor grinding machines indoors.
Need help selecting the right grinding tool for your project? Contact Vus Cutting Technology on WhatsApp at +27 83 680 2979 — our team will advise on the correct product for your surface and machine.
